| UPS SINGLE PHASE ON-LINE RACK 19”, SR 1 ÷ 3kVA SERIES |
The SR series on line double conversion UPS with full time Digital Signal Processor control technology is the perfect solution for
mission critical users who demand high reliability, availability and performance from a UPS. The rack/Tower convertible design,
input power factor correction, and high efficiency provide a superior level of power quality for sensitive electronic equipment
and computers loads.

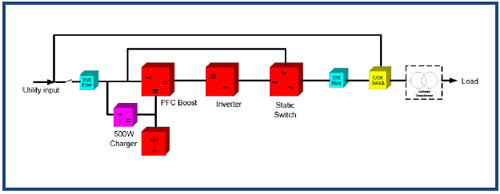

PRINCIPLES OF WORKING
The backup series is composed by: Rectifier, Inverter, Static Switch, manual by-pass and Battery.
The Rectifier-Inverter line normally feeds the users, and the Battery is kept charged by the Rectifier. If a black out occurs,
the Battery supplies power energy to users always through the Inverter. When the blackout is over, the Rectifier provides for
Battery charge.
If a short circuit or an overload occurs to the users, the Static By-pass switches the load over the emergency line. When the fault
is over, the Inverter feeds users.
|
|
FEATURES
| . |
Rack/Tower convertible design |
| . |
Double conversion ONLINE technology |
| . |
Full time Digital Signal Processor Control |
| . |
Filtered, and stabilized sine wave supply |
| . |
High input power factor and low current THD |
| . |
Wide input voltage and frequency range, minimizing the battery usage |
| . |
Zero transfer time |
| . |
Add matching battery cabinets and extend the backup time up to several hours. Superior overload capability |
| . |
Battery test, manual and automatic |
| . |
LCD display provides real time status and parameter readings |
| . |
Advanced Battery Discharge Management to prevent the deep discharge of the batteries during a power failure |
| . |
ON LINE - OFF LINE mode settable |
| . |
RS232 standard, dry contact, USB, RS485 & SNMP as option |
| . |
Emergency Power Off |
CONTROL PANEL
The front display panel provides all major systems parameters and operational
status of the UPS that include full diagnostics for simple, easy servicing. The SR LCD series
UPS with DSP control, systematically checks each component and displays the result using on
LCD display. This feature allows service technicians the ability to pinpoint and repair the UPS very quickly.
|
|
|
|
| . |
LED indicators: |
. |
Control Keypads: |
| 1 |
Mains_1 LED |
6 |
ON (& Alarm Silence) |
| 2 |
Mains_2 LED |
7 |
OFF Key |
| 3 |
Redundancy LED |
8 |
Function Key |
| 4 |
ECO Mode LED |
9 |
Scroll Keys |
| 5 |
Common Alarm LED |
10 |
Enter Key |
LCD Display Explanations:
| . |
Status
Line Mode, Back up Mode, ECO Mode, Bypass Supply, Battery Low Voltage, Battery Bad/Disconnect, Overload,
Transferring with Interruption & UPS fault.
|
| . |
Parameters
AC Voltage, Frequency, Load Percentage, Battery Voltage & Temperature.
|
INTERFACES
In additional to the standard RS232 with software, the SPH Series UPS also provides 2
additional customer options communication slots.
Standard serial RS 232
The smart port is an intelligent RS232 serial port that allows the UPS to a computer. The connector is
a standard D-Type, 9 pin, female. The software optionally allows the computer to monitor the mains voltage and the
UPS status continuously.
Dry contact card provides isolated contacts for industrial and remote alarm application.
|
|
2nd RS232, RS485 and USB port for remote signaling and automatic computer shutdown.
SNMP card for monitoring and integration in network management. The Simple Network Management Protocol
(SNMP) is a worldwide-standardized communication-protocol. It is used to monitor any device in the network via simple
control language.
The Emergency Power Offfacility must use a normally NO contact, which closes to operate the emergency stop procedure.
The emergency stop port is located at the rear of the UPS SPH module. Through the dry contact interface it is available also
a NC contact.
The SR series UPS is provided with monitoring and shutdown software. The monitoring software provides real-time UPS status
display via easy-to-read Meter and Gauges, Digital Table, Block Diagram and Graph Chart as well as remote monitoring of the
UPS through Intranet or Internet.
The software is compatible with many operating systems such as Windows 98, 2000, XP, Vista and Windows 7 For other applications
like Novell, NetWare, Unix, Linux, please contact your local distributor for a proper solution.
|
|
|
|
ACCESSORIES
- Additional battery cabinets to upgrade the backup time till several hours even after the first installation.
On request the add battery cabinet can be provided with an external independent battery charger to guarantee a fast recharge.
|
|
- External Bypass Switch Box Series. Beyond to the standard manual by-pass fitted in each UPS, the external maintenance bypass
and power output distribution switch allows you to manually transfer the connected equipment to utility power via a maintenance
bypass switch and vice versa. It is available till 400 A and it is suitable for single UPS and for a system composed till no.
4 UPS in parallel.
|
|
|
|
|
| Model |
SR1000LCD
|
SR2000LCD
|
SR3000LCD
|
| Rated power VA/W |
1000VA/800W |
2000VA/1600W |
3000VA/2400W |
| |
|
|
|
| INPUT |
|
| Nominal Voltage |
230V ±25% 2w |
| Frequency window |
45 ÷ 66Hz |
| Power factor |
>0.99 |
| Distortione (THiD) |
<6% |
| |
|
|
|
| OUPUT |
|
| Voltage |
220/230/240V ±1% 2w, settable |
| Frequency |
50Hz o 60Hz ±0.1% |
| Waveform |
Sinusoidal |
| Distortion (THD) |
<3% |
| Transfer time |
0 ms. |
| Crest factor |
3 : 1 |
| Overload |
150% for 1' |
| |
|
|
|
| BATTERY |
|
| Type |
Maintenance free VRLA
|
| Recharge time |
4h at 90% |
| Nominal voltage |
36Vdc |
72Vdc |
72Vdc |
| Charging current |
1.8 A |
2.1 A |
2.7 A |
| |
|
|
|
| PROTECTIONS |
|
| Short circuit |
Hold whole syustem
|
| Over temperature |
Switch to by-pass |
| Noise suppression |
According to EN62040-2 |
| Spike suppression |
According to EN61000-4-5 |
| |
|
|
|
| MISCELLANEOUS |
|
| Relative humidity |
<90% without condensing |
| Operating temperature |
from 0°C to + 40°C |
| Noise at 1 meter |
< 50 dBA |
| Interfaces |
RS232 (dry contact, RS485, USB, and SNMP as option) |
| EPO |
UPS shuts down immediately |
| Heat dissipation |
<> |
<> |
<> |
| Output terminals |
6 x IEC320-C13 |
4 x IEC320-C13
1 x IEC320-C19 |
| External battery cabinet |
Plug-in & Play |
| Dimensions (mm) |
440x405x440 |
440x420x440 |
440x420x440 |
| Weight |
15kg |
26kg |
27kg |
| |
|
|
|
| STANDARDS |
|
| Safety |
EN 62040-1-1, UL1778 |
| EMC |
EN 62040-2, EN 61000-3-2, EN 61000-3-3, FCC class A |
| Marks |
CE, cUL, UL |
| |
|
|
|
|
ELIT Srl reserves his right to do modifications to his products without notice. |
