UNINTERRUPTIBLE POWER SUPPLY

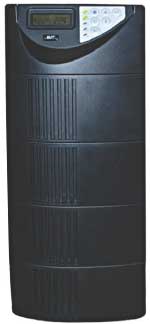

Single phase ON-LINE UPS, NS 5kVA ÷ 12kVA series
Single phase ON-LINE UPS, NS 5kVA ÷ 12kVA series



The NS series on line double conversion UPS with full time Digital Signal Processor control technology is the perfect solution for mission critical users who demand high reliability, availability and performance from a UPS. Input power factor correction, high efficiency and parallel redundant capability (N+X) provide a superior level of power quality for sensitive electronic equipment and computers loads.

PRINCIPLES OF WORKING

The backup series is composed by: Rectifier, Inverter, Static Switch, manual by-pass and Battery. The Rectifier-Inverter line normally feeds the users, and the Battery is kept charged by the Rectifier. If a black out occurs, the Battery supplies power energy to users always through the Inverter. When the blackout is over, the Rectifier provides for Battery charge.

If a short circuit or an overload occurs to the users, the Static By-pass switches the load over the emergency line. When the fault is over, the Inverter feeds users.

FEATURES

Simple Parallel installation N+X
Full time Digital Signal Processor Control
Filtered, stabilized and regulated sine wave supply
High input power factor and low current THD
Wide input voltage and frequency range, minimizing the battery usage
Zero transfer time
Add matching battery cabinets and extend the backup time up to several hours. With its isolation conversion technology plus precision control, the optional charger can be installed in parallel up to 4 units
Superior overload capability
High battery reliability (battery test, manual and automatic)
LCD display provides real time status and parameter readings
Advanced Battery Discharge Management to prevent the deep discharge of the batteries during a power failure
ON LINE - OFF LINE mode settable
Optional galvanic isolation transformer
RS232 standard, dry contact, USB, RS485 & SNMP as option
Optional dual input loops
Personalizing 60Hz output converter
Emergency Power Off

CONTROL PANEL

The front display panel provides all major systems parameters and operational status of the UPS that include full diagnostics for simple, easy servicing. The NS series UPS with DSP control, systematically checks each component and displays the result using on LCD display. This feature allows service technicians the ability to pinpoint and repair the UPS very quickly.



. LED indicators: . Control Keypads:
1 Mains_1 LED 6 ON & Alarm Sil. Key
2 Mains_2 LED 7 OFF Key
3 Redundancy LED 8 Function Key
4 ECO Mode LED 9 Scroll Keys
5 Common Alarm LED 10 Enter Key




LCD Display Explanations:
. Status
Line Mode, Back up Mode, ECO Mode, Bypass Supply, Battery Low Voltage, Battery Bad/Disconnect, Overload, Transferring with Interruption & UPS fault.
. Parameters
AC Voltage, Frequency, Load Percentage, Battery Voltage & Temperature

N+X POWER SCALABLE PARALLEL REDUNDANCY

The NS UPS may be paralleled for power capacity or for redundancy up to 4 units to increase the power capacity or configuring a parallel redundant UPS system. The standard apparatus can be simply interconnected up to 4 units using the CAN-bus RJ45 cables on the rear of the NS series UPS. The NS series UPS used an inverter control technology that allows to achieve N+1 scalable redundant power without the use of additional components.



The standard version is provided with this feature without any factory operation. The system is fully modular and allows to increase the overall power output, battery runtime, and redundancy as your needs and requirements grow. Parallel Distribution Box are available till 200 A (40kVA).

INTERFACES

In additional to the standard RS232 with software, the NS Series UPS also provides two additional customer options communication slots.

Standard serial RS 232
The smart port is an intelligent RS232 serial port that allows the UPS to a computer. The connector is a standard D-Type, 9 pin, female. The software optionally allows the computer to monitor the mains voltage and the UPS status continuously.



The NS series UPS is provided with the following accessory cards:

Dry contact card provides isolated contacts for industrial and remote alarm application.

2nd RS232, RS485 and USB port for remote signaling and automatic computer shutdown.

SNMP card for monitoring and integration in network management. The Simple Network Management Protocol (SNMP) is a worldwide-standardized communication-protocol. It is used to monitor any device in the network via simple control language.

The Emergency Power Off facility must use a normally NO contact, which closes to operate the emergency stop procedure. The emergency stop port is located at the rear of the UPS NS module. Through the dry contact interface it is available also a NC contact.

The NS series UPS is provided on request with monitoring and shutdown software. The monitoring software provides real-time UPS status display via easy-to-read Meter and Gauges, Digital Table, Block

Diagram and Graph Chart as well as remote monitoring of the UPS through Intranet or Internet. The software is compatible with many operating systems such as Windows 98, 2000, XP, Vista and Windows 7 For other applications like Novell, NetWare, Unix, Linux, please contact your local distributor for a proper solution.



ACCESSORIES

- Additional battery cabinets to upgrade the backup time till several hours even after the first installation. On request the add battery cabinet can be provided with an external independent battery charger to guarantee a fast recharge.

- Optional External 1000W Charger. Its independent electronic control allows to the device to work in parallel up to 4 units. The external battery charger is foreseen to be placed on back of the cabinet.



- External Bypass Switch Box Series. Beyond to the standard manual by-pass fitted in each UPS, the external maintenance bypass and power output distribution switch allows you to manually transfer the connected equipment to utility power via a maintenance bypass switch and vice versa. It is available till 400 A and it is suitable for single UPS and for a system composed till no. 4 UPS in parallel.











REAR PANEL EXPLANATION


RS232 port
Terminal Resistor for Parallel Function
CAN Bus Connection Port for Parallel System
Customer Options Slot 1
Customer Options Slot 2
Cooling Fan
External Battery Connector
External Charger Connector
Utility Input Breaker CB1
Bypass Input Breaker CB2 (for Dual Input Model Only)
CAM Switch (Maintenance Bypass Switch)
Input/Output Terminal Block
Fixing Holes for External Charger Cabinet
EPO, Short to enable the Function
Thermal Breaker for the Protection of Load in Abnormal Condition: CB3
Air Ventilation Hole

BLOCK DIAGRAM

Model NS5000
 NS6000
 NS10000
 NS12000
Rated power VA/W 5000/4500 6000/5400 10000/9000 12000/9600

INPUT
Nominal Voltage 160 ÷ 280Vac single phase
Frequency 45 ÷ 65Hz
Power factor 0.99 at full load
Distortione (THiD) <6%

OUPUT
Voltage 220/230/240V ±2% single phase, adjustable
Frequency 50/60Hz auto sensing
Frequency tolerance ± 0.2% free running; regulation ±1Hz or ±3Hz
Waveform Sinusoidal
Distortion (THD) < 3%
Transfer time 0 ms.
Crest factor 3 : 1
DC start yes
Overload 150% for 3'' 150% for 1'

BATTERY
Type Maintenance free VRLA
Recharge time 4h at 90% 5h at 90%
Nominal voltage 240Vdc ± 288Vdc
Standard back up time 15' 10' 15'

PROTECTION
Short circuit Switch off immediately
Overheat Switching by-pass
Leakage current < 3mA at full load

EFFICIENCY
ON LINE mode Up to 90% Up to 93.5%
OFF LINE mode Up to 95%

MISCELLANEOUS
Relative humidity < 90% without condensing
Operating temperature from 0 0°C to + 40°C
Noise < 50 dBA at 1 meter
Interfaces RS232 & EPO (dry contact, 2nd RS232, RS485, USB, SNMP as option)
Parallel availability Yes Yes Yes No
Heat dissipation < 450W < 600W
Input/output connection Terminals
Ext. battery connection Plug-in & Play
Dimensions (mm) 176x670x440 290x645x881 335x767x809
Weight 60kg 90kg 100kg 135kg

STANDARDS
Safety IEC/EN 62040-1-1, IEC/EN 60950-1
EMC IEC/EN 62040-2, IEC/EN61000-3-2, IEC/EN61000-6-2
Performance EN 62040-3


ELIT Srl reserves his right to do modifications to his products without notice.
