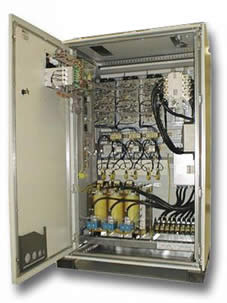

ELECTRONIC POWER STABILIZERS AND CONDITIONERS
  ELECTRONIC STABILIZER SINGLE PHASE STE SERIES

The electronic voltage stabilizers electronic voltage, STE series, guarantees an high efficiency and perfect output voltage stability. Made entirely with solid-state components and characterized by a very high speed of adjustment, the STE stabilizers are provided with a modern design, highly reliable, silent and they don't have magnetic dispersion, therefore they can be installed in any working environment and in proximity to any equipment. The adjustment of the output voltage is performed by a series of static switches controlled by an electronic circuit. The STE series is provided with an autotransformer which, together with a screen between input and output, allows the total elimination of any disturbance of the mains.

MODEL STE
500		 STE
1000		 STE
2000		 STE
4000
RATED POWER
VA		 500 1000 2000 4000
INPUT VOLTAGE
Vac		 230 -20% +15%
OUTPUT VOLTAGE
Vac		 230 ±3%
TOTAL SPEED REGULATION
msec.		 10
LOAD VARIATION PERMITTED from 0 a 100%
POWER FACTOR any
HARMONIC DISTORTION <0.5%
EFFICIENCY 98%
WORKING TEMPERATURE °C -10/+40
DIMENSION
mm		 160x130x335 220x200x500
WEIGHT
Kgs		 8 10 20 30
SAFE STANDARD EN 50091-1 & directive 73/23/CEE
EMC STANDARD Directive 89/336/CEE


The range of ELIT voltage stabilizers includes:

SERIES STE
Single-phase electronic stabilizer from 500VA to 4kVA;

SERIES STAB E
Electromechanical stabilizer from 5kVA to 30kVA single phase;

SERIES STAB T
Electromechanical stabilizer from 5kVA to 170kVA three-phase;

SERIES STAB S
Electromechanical stabilizer with independent phase adjustments from 5kVA to 400kVA three phase;

SERIES STAB TPH
Electronic stabilizer with independent phase adjustments and recovery time 20msec from 0V to 400V, from 10kVA to 800kVA, three phase.



ELECTROMECHANICAL STABILIZER
The ELIT electromechanical stabilizers don't introduce alterations to the waveform and they are able to supply loads with deformed current waveforms, without affecting the output voltage. Not being affected by the power factor the ELIT electromechanical stabilizers can feed any load, and their performance does not change with the variation of the load from 0 to 100%. The booster transformer allows you to exploit the full range of the voltage regulator and to circulate in the brushes only a fraction of the rated current.
The speed variator is driven by a dc motor which, in turn, it is controlled by an electronic control circuit completely static with two thresholds. The first is proportional to the error and the second is ON-OFF depending on the amount of correction needed. Also the brush position of the speed variator is electronically controlled.
The features shown here can be modified to meet the needs of the customer. The electromechanical regulators, described herein, exploiting the capacity of the system booster transformer + autotransformer with variable ratio to add or subtract voltage to the line on which the booster is connected in series. In fact, the speed variator is capable of feeding the primary of the booster transformer with a variable voltage, both in width and in polarity and consequently of transferring at the secondary in series with the line, a voltage that will be added vectorially to the voltage at the ends of the booster transformer.
A control board, fully static, acting on the ratio-motor mechanically connected to the brushes of the speed variator, allows to compensate for voltage variations in line.
In the case of three-phase stabilizers with independent phase adjustments, the system is realized with a star connection of 3 single phase stabilizers. Each single phase stabilizer can adjust the voltage between its own phase and neutral, that must be present in input for a correct operation of the equipment. In this way it is able to supply loads with unbalanced input voltages up to 100% while maintaining the accuracy of the voltage to the load.
In this way the system appears to be with reduced dimensions and with an high efficiency. Because of the low impedance in series with the mains, the electromechanical stabilizer turns out to be insensitive to the power factor of the load, not introducing appreciable harmonic distortions too.


MODEL STAB E STAB T STAB S
INPUT VOLTAGE 230V 1PH 400V 3PH+N 400V 3PH+N
INPUT WINDOW VOLTAGE ±15%
(upper variations on request)
SPEED REGULATION 18msec/V
OUTPUT VOLTAGE ACCURANCY ±1%
MAX UNBALANCE LOAD -- Up to 50% from 0 to 100%
HARMONIC DISTORTION < 0.2%
OVERLOAD 200% per 2 minutes
IP PROTECTION IP 21 (upper on request)
ENVIROMENTAL TEMPERATURE -15°C ÷ +45°C


ELECTRONIC STABILIZER THREE PHASE TPH SERIES STAB TPH
The load is always powered by the inverter with sinusoidal voltage and frequency stabilized, using the energy from the input mains.

MODEL STAB TPH
INPUT WINDOW VOLTAGE 400V 3PH+N
INPUT WINDOW VOLTAGE ±20%
TOTAL SPEED REGULATION 20msec
OUTPUT VOLTAGE ACCURANCY Static stability±1%
Dynamic stability±5%
MAX UNBALANCED LOAD from 0 to 100%
HARMONIC DISTORTION < 2%
OVERLOAD 125% for 10 minutes
150% for 1 minute
IP PROTECTION IP 21
ENVIROMENTAL TEMPERATURE -15°C ÷ +45°C
PRODUCT CODE RATED POWER kVA
(V±15±15)		 INPUT VOLTAGE
V		 SPEED REGULATION STABILIZER DIMENSIONS WxDxH mm WEIGHT kgs
ELECTRONIC STABILIZER SINGLE PHASE STE SERIES
STE500 0.5/0.4 1PH+N 10 160x130x335 8
STE1000 1/0.8 1PH+N 10 160x130x335 10
STE2000 2/1.6 1PH+N 10 220x200x500 20
STE4000 4/3.2 1PH+N 10 220x200x500 30
ELECTROMECHANICAL STABILIZER SINGLE PHASE STAB E SERIES
STAB E5 5/4 1PH+N 18msec/V 300x600x300 25
STAB E7 7/5.5 1PH+N 18msec/V 300x600x300 30
STAB E10 10/8 1PH+N 18msec/V 300x600x300 40
STAB E15 15/12 1PH+N 18msec/V 300x600x300 45
STAB E20 20/16 1PH+N 20msec/V 400x700x1200 100
STAB E30 30/24 1PH+N 20msec/V 400x700x1200 120
ELECTROMECHANICAL STABILIZER THREE PHASE WITH UNIQUE REGULATION STAB T SERIES
STAB T5 5/4 3PH+N 18msec/V 400x700x1200 60
STAB T10 10/8 3PH+N 18msec/V 400x700x1200 70
STAB T15 15/12 3PH+N 18msec/V 400x700x1200 100
STAB T20 20/16 3PH+N 18msec/V 400x700x1200 130
STAB T30 30/24 3PH+N 18msec/V 400x700x1200 170
STAB T50 50/40 3PH+N 18msec/V 600x800x1400 240
STAB T75 75/60 3PH+N 18msec/V 600x800x1400 320
STAB T100 100/80 3PH+N 18msec/V 600x800x1400 420
STAB T135 135/108 3PH+N 18msec/V 600x800x1600 510
STAB T170 170/136 3PH+N 18msec/V 600x800x1600 600
ELECTROMECHANICAL STABILIZER THREE PHASE WITH INDEPENDENT REGULAZION STAB S SERIES
STAB S5 5/4 3PH+N 18msec/V 400x550x1000 60
STAB S10 10/8 3PH+N 18msec/V 400x550x1000 65
STAB S15 15/12 3PH+N 18msec/V 400x550x1000 100
STAB S20 20/16 3PH+N 18msec/V 400x550x1000 120
STAB S30 30/24 3PH+N 18msec/V 400x700x1200 160
STAB S50 50/40 3PH+N 18msec/V 400x700x1200 180
STAB S75 75/60 3PH+N 18msec/V 600x800x1400 400
STAB S100 100/80 3PH+N 18msec/V 600x800x1400 420
STAB S135 135/108 3PH+N 18msec/V 600x800x1600 520
STAB S170 170/136 3PH+N 18msec/V 600x800x1600 610
STAB S220 220/176 3PH+N 18msec/V 1200x850x1700 980
STAB S300 300/240 3PH+N 18msec/V 1200x850x1700 1600
STAB S400 400/320 3PH+N 18msec/V 1200x850x1700 1750
ELECTRONIC STABILIZER THREE PHASE STAB TPH SERIES
STAB TPH10 10/8 3PH+N 20 500x800x1200 95
STAB TPH15 15/12 3PH+N 20 500x800x1200 100
STAB TPH20 20/16 3PH+N 20 500x800x1200 125
STAB TPH30 30/24 3PH+N 20 500x800x1200 140
STAB TPH40 40/32 3PH+N 20 500x800x1200 160
STAB TPH60 60/48 3PH+N 20 500x800x1200 180
STAB TPH80 80/64 3PH+N 20 500x800x1200 200
STAB TPH100 100/80 3PH+N 20 800x800x1900 600
STAB TPH120 120/96 3PH+N 20 800x800x1900 650
STAB TPH160 160/128 3PH+N 20 800x800x1900 750
STAB TPH200 200/160 3PH+N 20 800x800x1900 800

ELIT Srl reserves his right to do modifications to his products without notice.
